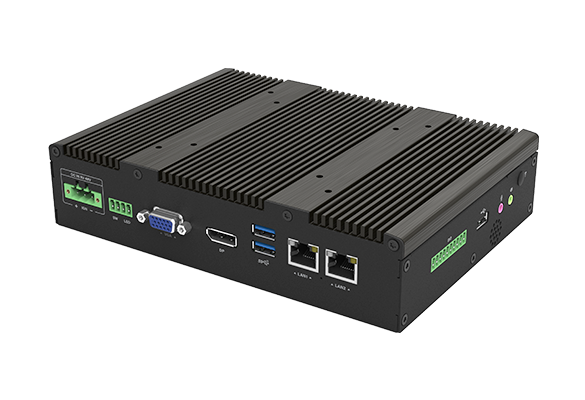

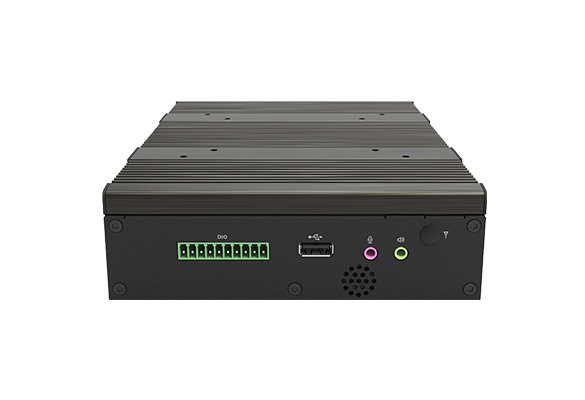

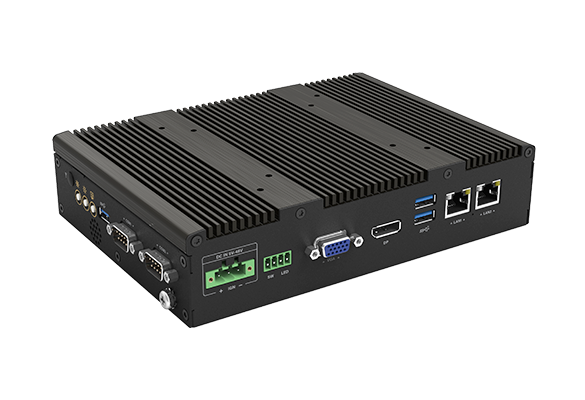

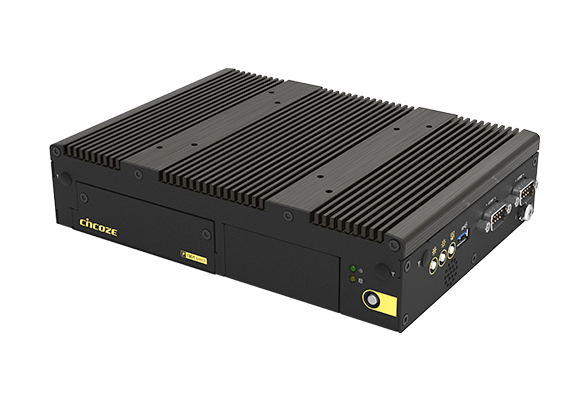

P1301

Intel® Alder Lake-N Platform, Slim Embedded Computer with CDS Technology

Features:

Onboard Intel® Alder Lake-N Core™ i3-N305, Processor N97 and Atom® x7425E Processor
1 x DDR5 SO-DIMM Socket, Supports up to 4800MHz & 16GB Memory
1 x M.2 Key E Type 2230 Socket for Wireless / Bluetooth / Intel CNVi Module Expansion
1 x M.2 Key B Type 3042 / 3052 Socket for 5G / GNSS / Storage / Add-on Card Expansion
Supports Cincoze Patent CDS Technology (Patent No. M482908)
CFM Technology for Power Ignition Sensing & PoE Function
Wide Operating Temperature -40°C to 70°C (-40°F to 158°F)
Safety Standard: UL, cUL, CB, IEC, EN 62368-1

Overview

The P1301, with Intel® Alder Lake-N processor, is a slim and fanless embedded computer designed for industrial IoT edge computing. Flexible expansion is one standout feature, with rich native I/O interfaces, and M.2 Key E Type 2230 and M.2 Key B Type 3052 expansion slots for wireless communication and mobile applications. The P1301 includes the exclusive CFM expansion module to add PoE and IGN functions. The slim 46.5 mm chassis is suitable for installation in narrow spaces. One Computer / Two Purposes (embedded computer & panel PC) is the biggest selling point of the P1301. Using the exclusive CDS patented technology to connect a display module with different characteristics according to the application requirements, it becomes an industrial panel PC, a sunlight readable panel PC, or an open frame panel PC to meet any display computing needs.
