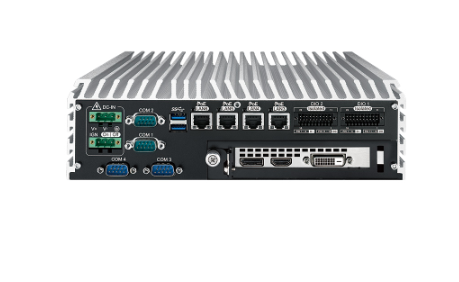

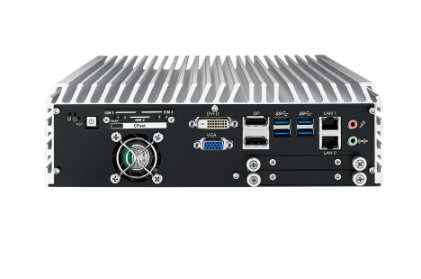

ECS-9700 PEG
Quad Core Intel® Xeon®/Core™ i7/i5 Processor (Skylake-H) AI Computing System with Intel® CM236 & NVIDIA® Tesla®/Quadro®/GeForce®/AMD Radeon™ Graphics, 6 GigE LAN with 4 PoE+, 2 Front-access SSD Tray, 4 SIM, 6 USB 3.0, 4 COM, 32 Isolated DIO, 2 SUMIT Slots, High Performance, Independent Graphics, EN50155, EN50121
Features:
- Workstation-grade Intel® Xeon®/Core™ i7/i5 Processor (Skylake-H) with Intel® CM236
- 2 DDR4 2133MHz SO-DIMM, up to 64GB (ECC/Non-ECC)
- NVIDIA® Tesla®/Quadro®/GeForce® graphics card powered by NVIDIA Turing/Pascal architecture, delivers leading AI computing productivity
- Multiple DVI, VGA and DisplayPort display interfaces support max 7 independent displays, up to 8K Resolution
- 6 Independent GigE LAN with 4 IEEE 802.3at PoE+
- 4 SIM card socket for WiFi/4G/3G/LTE/GPRS/UMTS
- 2 Front-access 2.5” SSD Tray, 6 USB 3.0, 4 COM
- 32 Isolated DIO, 4 Mini PCIe/mSATA
- 10V to 36V DC-in with 80V Surge Protection
- Configurable Ignition Power Control
- Optional supports full function SUMIT A, B
