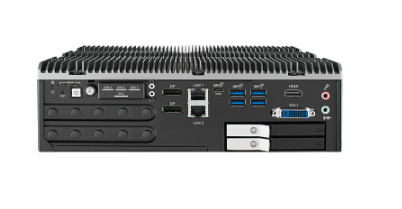

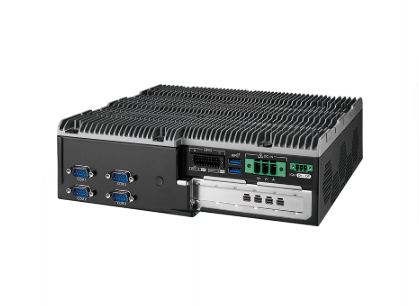

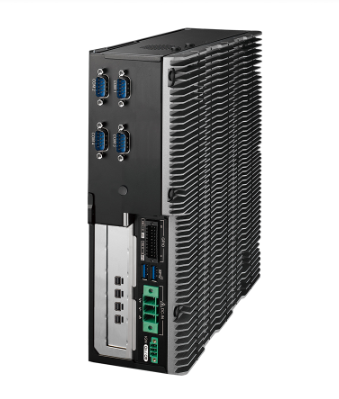

ECX-3100 PEG
Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor Flexible AI Computing Workstation, 2 GigE LAN, 2 front-access SSD trays, 1 PCIe slot, 3 Nano SIM, 6 USB 3.2, 4 COM RS-232/422/485, M.2 Key B, M.2 Key E, M.2 Key M, 16 GPIO, High-Performance, Rugged, -20°C to 45°C Extended Temperature
Features:
- Workstation-grade Platform : Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor (codename: Bartlett Lake-S/Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) running with Intel® R680E PCH supports max 65W TDP CPU
- Intel® Core™ 200S Series with P-core only available (codename: Bartlett Lake 12P)
- Supports outstanding AI computing productivity by NVIDIA®/AMD graphics card, up to 200W power budget
- USB 3.2 Gen 2x2 offers a max speed of 20Gbps data transfer
- DC 12V to 50V wide range power input, Software Ignition Control
- 2 Independent GigE LAN
- Expansion : 1 PCIe x16 slot, 1 M.2 Key B, 1 M.2 Key E, 1 Mini PCIe
- Supports multiple 5G/WiFi/BT/4G/LTE/GPRS/UMTS
- Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
- Storage : 2 front-access 2.5" SSD Tray, M.2 Key M
