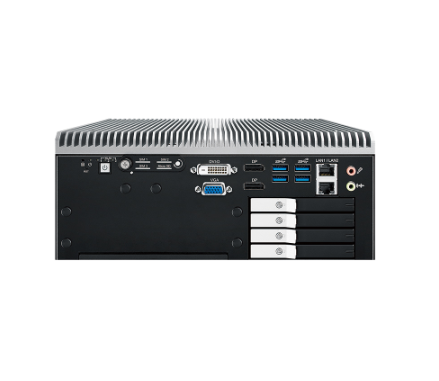

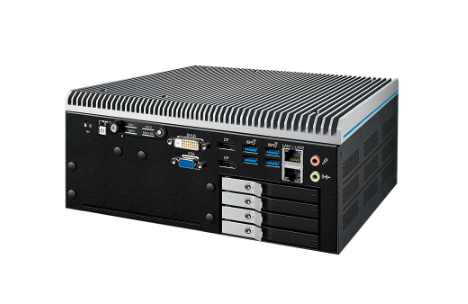

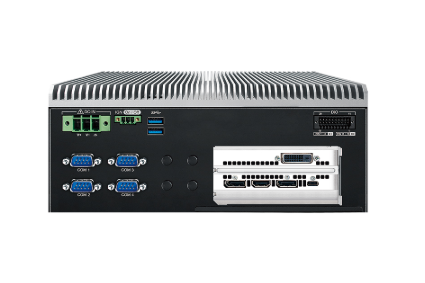

ECX-2300A PEG (I210)
Workstation-grade 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (CML) AI Computing System with NVIDIA® Tesla®/Quadro®/GeForce® Graphics, 2 GigE LAN, 4 front-access SSD trays, 1 PCIe x16 slot, 1 PCIe x4, 3 Nano SIM, 6 USB 3.2, 4 COM RS-232/422/485, M.2 Key B, M.2 Key E, M.2 Key M, 16 GPIO, High-Performance, Rugged, Extended Temperature
Features:
- Workstation-grade Platform : 10-core 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (CML-S) running with Intel® W480E chipset supports max 95W TDP CPU
- Supports up to 250W NVIDIA® or AMD Graphics card
- NVIDIA® Tesla®/Quadro®/GeForce® graphics card delivers leading AI computing productivity by advanced NVIDIA® CUDA® cores
- 12V to 50V wide range DC Power Input with 80V Surge Protection
- 6-port USB 3.2 support up to 10Gbps data transfer
- Storage : 4 2.5" SSD Tray, 1 Micro SD Card, 1 M.2 Key M, 4 SATA III
- Expansion : 2 PCIe, 1 M.2 Key B, 1 M.2 Key E, 2 Mini PCIe
- Multiple VGA, DVI, HDMI and DisplayPort display interfaces support max 7 independent displays, up to 8K Resolution
- 16 GPIO, 4 COM RS-232/422/485
- 3 External Nano SIM Sockets for 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS
- Supports Configurable Software Ignition Power Control and TPM 2.0
- Optimized user-friendly design for easier system maintenance
- Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
