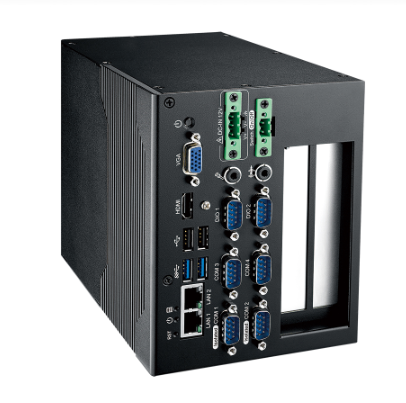

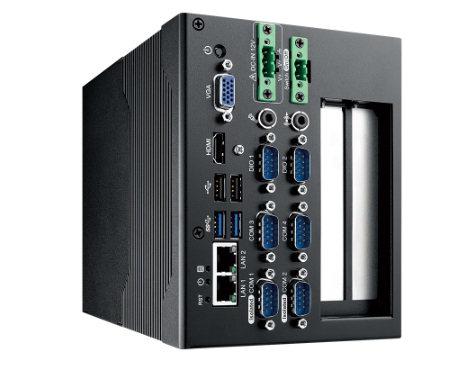

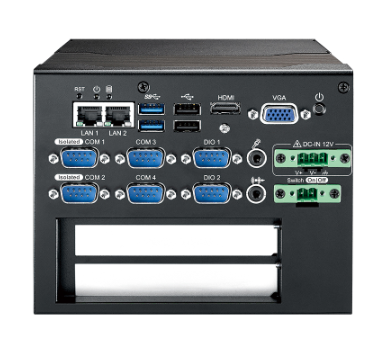

SEC-2211
Intel Atom® x7-E3950 SoC (Apollo Lake-I) Expandable Fanless Embedded System, HDMI and VGA dual display, 1 PCI, 1 PCIe x16 slot (PCIe x1 signal), 2 GigE LAN support IEEE 1588 (PTP), 4 COM with 2 Isolated, 4 USB, 16 GPIO, 1 SIM, 12V DC power input, Fanless -40°C to 75°C operating temperature
Features:
- Quad Core Intel Atom® x7-E3950 SoC (Apollo Lake-I) delivering lower power consumption
- Compact & Fanless design, -40°C to 75°C operating temperature
- Supports HDMI & VGA dual display, up to 4K resolution
- DDR3L 1866MHz memory supports up to 8GB
- 2 GigE LAN support IEEE 1588 (PTP)
- 4 COM RS-232/422/485 with 2 Isolated
- 4 USB, 16 GPIO, 1 SIM socket
- 1 PCIe x16 slot, 1 PCI slot, 2 Mini PCIe, 1 SATA III
- SIM socket for WiFi/4G/3G/LTE/GPRS/UMTS
- 12V DC Power Input
- TPM 2.0 supported
