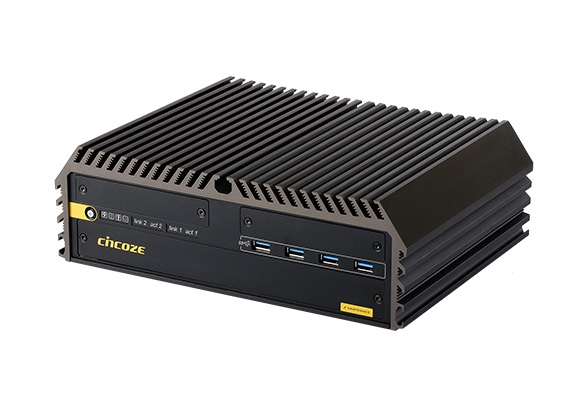

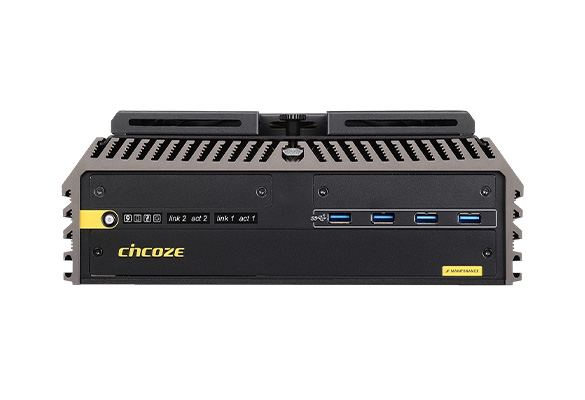

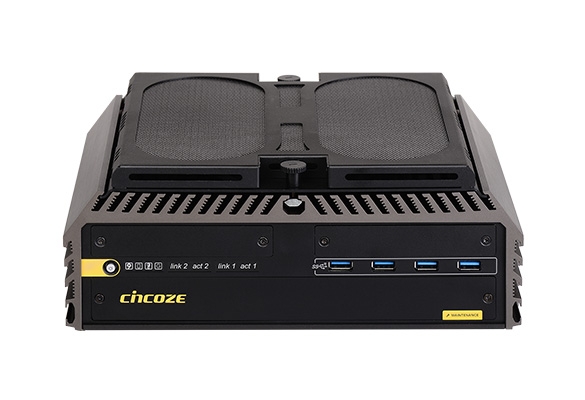

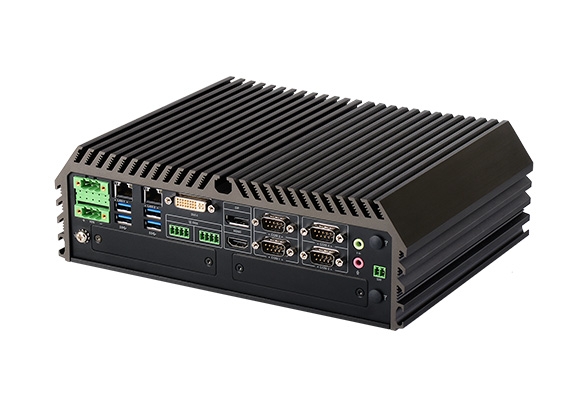

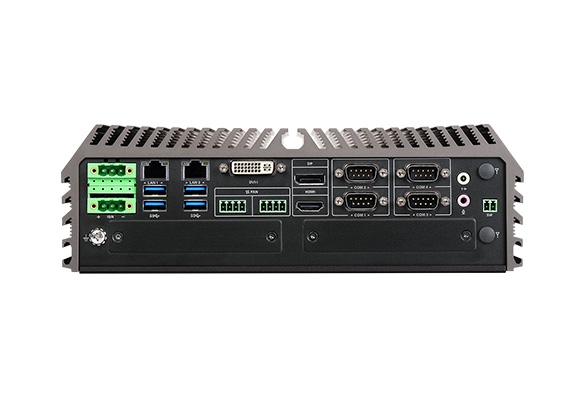

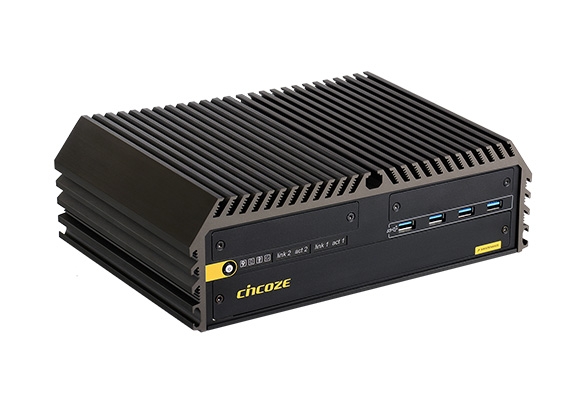

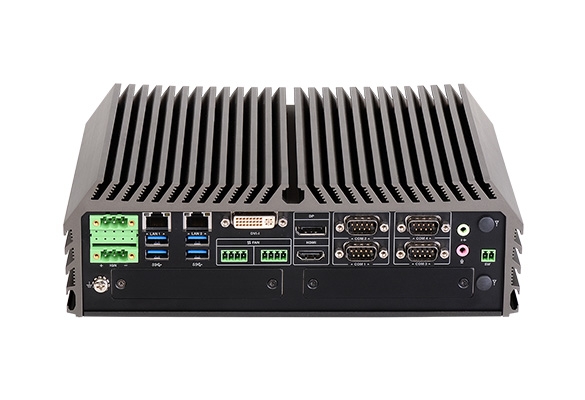

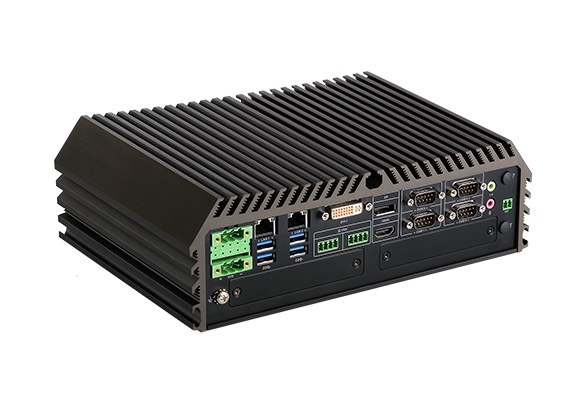

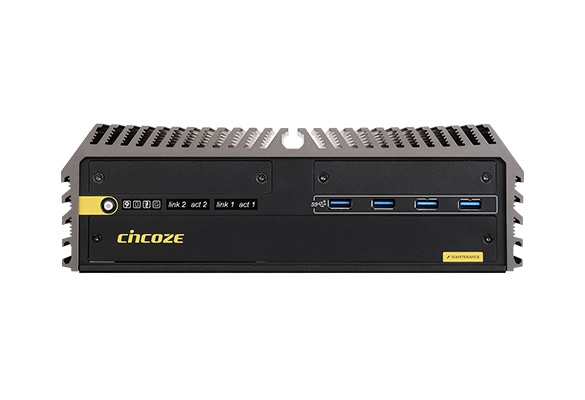

GM-1000

9th/8th Gen Intel® Xeon®/Core™ Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket

Features:

Supports 9th/8th Gen Intel® Xeon®/Core™ Processor up to 8 cores
Supports 1x MXM 3.1 Type A/B form factor GPU module expansion
2x DDR4 SO-DIMM sockets, up to 2666MHz, 64GB
Supports wide operating temperature (-40°C to 70°C / -40 °F to 158 °F) and vibration/shock tolerance (5G/50G)
260 mm x 200 mm x 85 mm compact footprint
Flexible functionality expansions:
- M.2 E key (CNVi), full-size Mini-PCIe and M.2 M Key (NVMe SSD)
- Proprietary CMI interface for various I/O expandability
- Proprietary CFM interface for PoE+ or Power Ignition Sensing

Datasheet Contact Us

Overview

Many computers struggle to handle the high-speed image capture and processing demands of machine vision applications. Both CPU computing power and GPU graphics acceleration are needed because the combination provides the fastest and most accurate results for image processing and data analysis, improving productivity and efficiency. Machine vision is an essential element of automatic inspection, process control, and robot guidance. The Cincoze GM-1000 is a machine vision computer designed for machine vision applications, but with enough extra for artificial intelligence and image processing. All this in a tough, compact, and reliable package.
