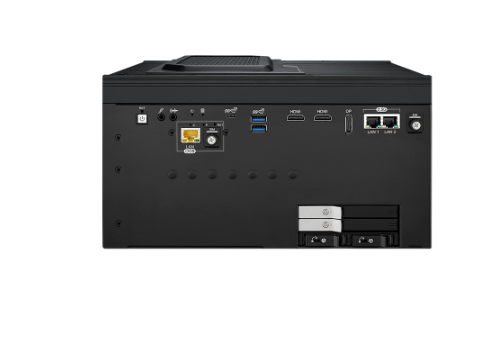

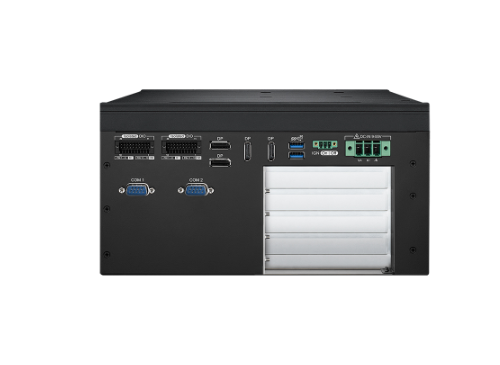

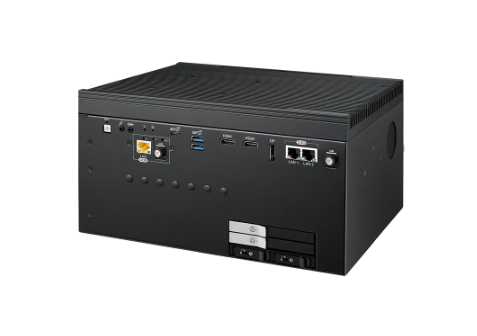

EVS-3400
Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor Fanless AI Computing System with Intel® R680E & Compact NVIDIA® or AMD MXM Graphics, 2 2.5G LAN, 1 OOB LAN, 1 PCIe 4.0 x8, 3 PCIe 4.0 x4, 5 USB 3.2, 2 COM RS-232/422/485, 32 Isolated DIO, 2 Front-access M.2 SSD Tray, 2 Front-access SSD/HDD Tray, High-Performance, Workstation-grade, DC 9V to 55V, Optional Fan Sink
Features:
- Workstation-grade Platform: Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor (codename: Bartlett Lake-S/Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) running with Intel® R680E PCH supports max 65W TDP CPU
- Intel® Core™ 200S Series with P-core only available (codename: Bartlett Lake 12P)
- Supports up to a 115W compact NVIDIA® Quadro®/GeForce® MXM graphics card, which delivers with advanced NVIDIA® CUDA® cores.
- Capable of accommodating 2 NVIDIA®/AMD graphics cards with a maximum power consumption of 200W
- 1 PCIe x16 Slot with x8 signal, 1 PCIe x16 Slot with x4 signal, 2 PCIe x8 Slot with x4 signal
- 2 Front-access M.2 and 2 2.5" SSD Tray, 1 SIM Socket for wireless network
- USB 3.2 Gen 2x2 offers max data transfer speeds of 20Gbps
- Fanless operation in temperatures from -25°C to 55°C
- DC 9V to 55V wide range power input with Software Ignition Control
- Supports remote devices Out-of-Band management functions powered by Allxon
