Icubes Industrial

CV-110H Series

10.4" TFT XGA 4:3 Display Module with Resistive 5-wire / Projected Capacitive Touch

Features:

10.4“ XGA TFT 4:3 LCD with Resistive 5-wire Touch / Projected Capacitive Touch
70,000 hours LED Backlight Life
Resolution up to 1024 x 768 (XGA)
470 nits Brightness
Designed with Aluminum Die-cast Front Frame
IP 65 Compliant Front Panel
Convertible Display System (CDS) Supported
Safety: UL, cUL, CB, IEC, EN 62368-1

Datasheet Contact Us

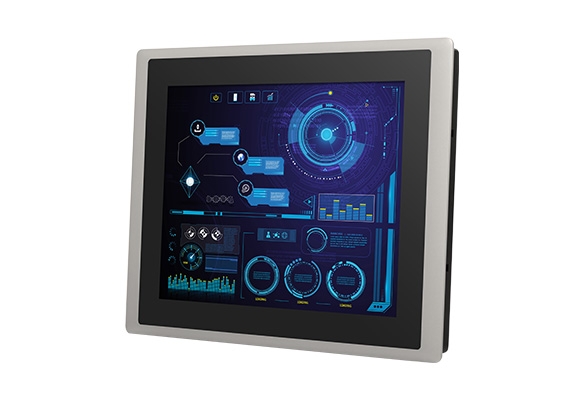

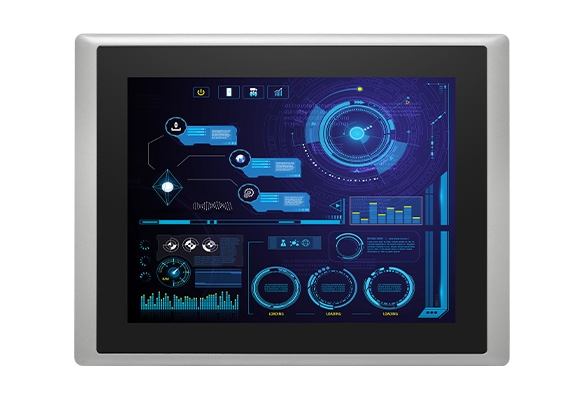

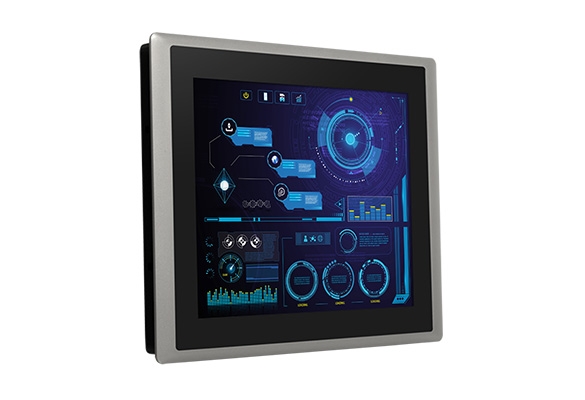

Overview

CV-110H Series is a 10.4“ LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 1024 x 768 (XGA) and 400 nits brightness. CV-110H Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-110H Series allows you to configure, upgrade and maintain your Convertible Display System easily.
