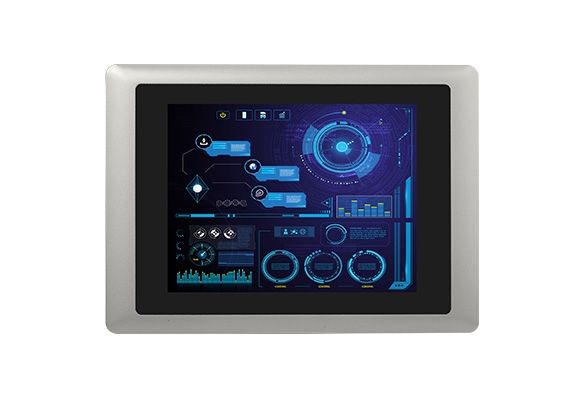

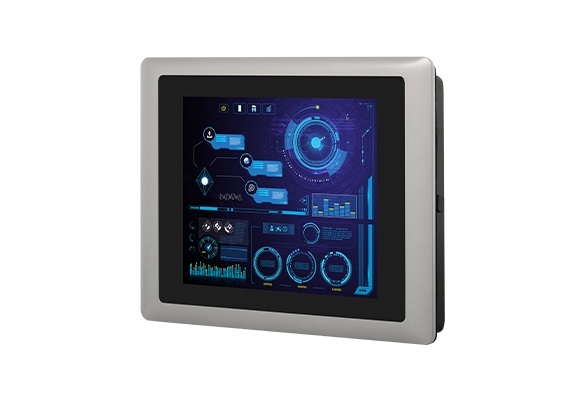

CV-108 / P1301 Series

8.4" TFT-LCD Modular Panel PC with Intel® Alder Lake-N Series Processor

Features:

8.4" TFT-LCD SVGA with Resistive 5-wire / Projected Capacitive Touch
Onboard Intel® Alder Lake-N Core™ i3-N305, Processor N97 and Atom® x7425E Processor
1 x DDR5 SO-DIMM Socket, Supports up to 4800MHz & 16GB Memory
1x M.2 Key E Type 2230 Socket for Wireless/Bluetooth/Intel CNVi Module Expansion
1x M.2 Key B Type 3042/3052 Socket for 5G/GNSS/Storage/Add-on Card Expansion
Front Panel IP65 Compliant
Designed with Rugged Aluminum Die-casting Front Bezel
Supports Panel / VESA / Rack Mount
Supports Cincoze Patent CDS Technology (Patent No. M482908)

Datasheet Contact Us

Overview

The CV-100/P1301 series is a modular industrial panel PC with an Intel® Alder Lake-N processor, a comprehensive selection of screen sizes, and flexible expansion. It includes a rich set of native I/O interfaces (2.5 GbE LAN, USB 3.2 Gen 2x1, COM, and DIO), has M.2 Key B Type 3052 and M .2 Key E Type 2230 expansion slots, and supports the exclusive CFM expansion module to add PoE and IGN functions. Cincoze’s exclusive CDS patented technology provides flexibility for future computer performance upgrades or display replacements. The rugged CV-100/P1301 series can meet the diverse applications of equipment machine HMI and production process visualization.
