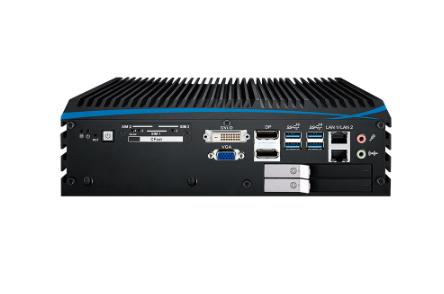

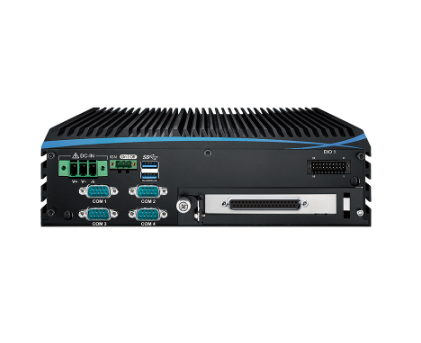

ECX-1100 AIO
9th Gen Intel® Xeon®/Core™ i7/i5/i3 Processor (Coffee Lake Refresh) Fanless Embedded System with Intel® C246 Chipset, 2 GigE LAN, 2 Front-access SSD Tray, 6 USB 3.1, 3 M.2, 3 SIM, SUMIT, 16 GPIO, Analog Input, Analog Output, High Performance, Rugged, 0°C to 70°C Extended Temperature
Features:
- 8 Cores 9th Gen Intel® Xeon® /Core™ i7/i5/i3 Processor (Coffee Lake Refresh) with workstation-grade Intel® C246 Chipset
- Fanless, 0°C to 70°C Operating Temperature
- 32-channel 16-bit Analog Input, 2-channel 16-bit Analog Output
- 2 Independent GigE LAN support iAMT 12.0
- 6 USB 3.1, 4 COM RS-232/422/485, 16 GPIO
- Expansion : 2 Mini PCIe, M.2 Key E, SUMIT A, B
- Storage : 2 2.5" SSD Tray, 1 CFast, M.2 Key M, M.2 Key B, 2 SATA III
- 6V to 36V DC Power Input with 80V Surge Protection
- Configurable Ignition Power Control
- Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
