CV-W121 / P2302 Series

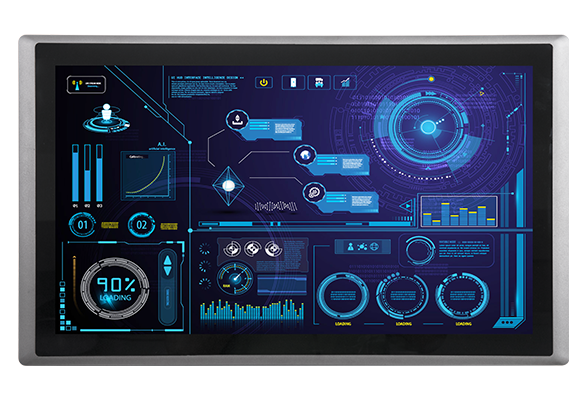

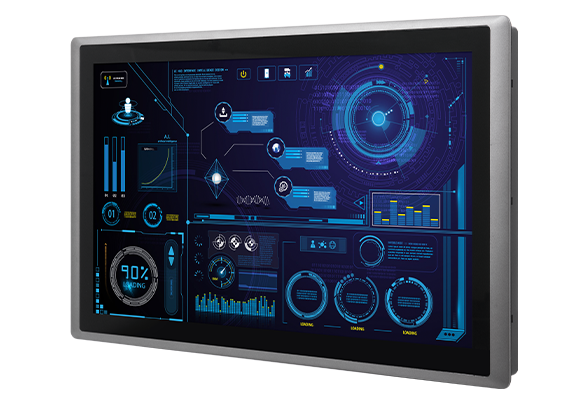

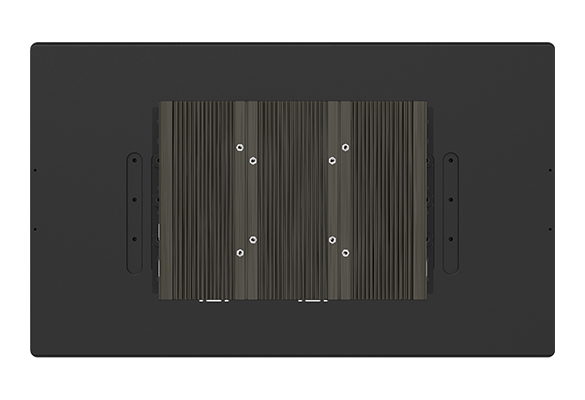

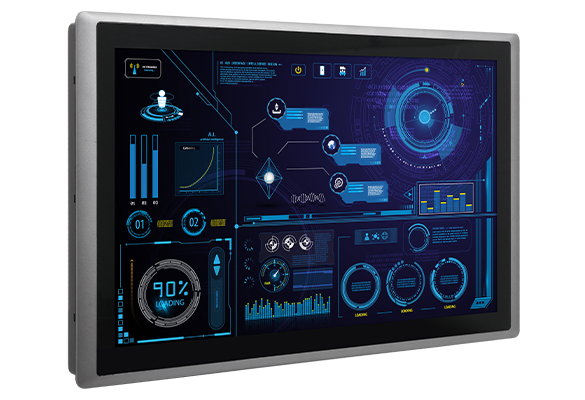

21.5" TFT Full HD 16:9 Display Modular Panel PC with Intel Meteor Lake-PS Core Series (LGA Socket) Embedded Computer

Features:

21.5" TFT Full HD 16:9 LCD with Resistive / P-CAP / P-CAP (AG) / Glass Only
Intel® Meteor Lake-PS Core™ Ultra 7/5/3 Processor
2 x DDR5 SO-DIMM Socket, Supports up to 5600MHz 96GB Memory
Quad Independent Display (CDS / HDMI / DP / VGA)
1x M.2 Key E Type 2230 Socket for Wireless / Bluetooth Module Expansion
1 x M.2 Key B Type 3052/3042 Socket for 5G/GNSS/Storage/Add-on Card Expansion
1x M.2 Key B Type 3042 Socket for Storage/Add-on Card Expansion
Designed with Aluminum Die-cast Front Bezel
Front Panel IP65 Compliant

Datasheet Contact Us

Overview

The CV-100/P2302 series are high-performance modular industrial panel PCs supporting the latest Intel® Core Ultra processors (Meteor Lake-PS) across 20 model variations with flexible expansion capabilities. The series features rich built-in I/O interfaces and supports a variety of expansion slots, including M.2 Key B and Key E, PCI/PCIe (P2302E only), and CFM and MEC modular expansion (P2302E only) for adding wireless communication, NVMe storage, and I/O functions as needed. The rugged design makes the CV-100/P2302 series suitable for diverse application fields such as equipment HMI and production process visualization.
