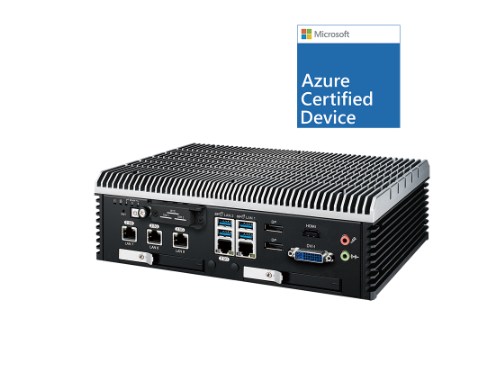

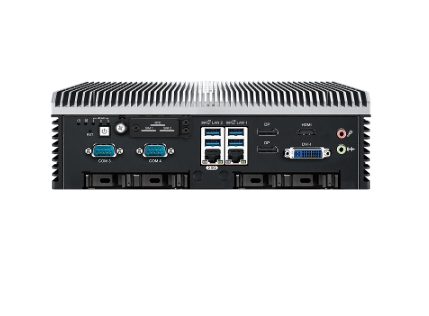

ECX-3000 AI
Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor Workstation-grade Fanless Embedded System with compact Hailo-8™ AI accelerator, max 5 2.5G LAN with 4 PoE+, 4 Front-access M.2 SSD Tray, DC 9V to 50V, High Performance, Rugged, -40°C to 65°C Extended Temperature
Features:
- Workstation-grade Platform : Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor (codename: Bartlett Lake-S/Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) running with Intel® R680E PCH supports max 65W TDP CPU
- Intel® UHD Graphics 770 driven by Intel® Xe architecture with up to 32 graphics execution units (EUs) delivers immersive interactions with integrated graphics and accelerated AI performance

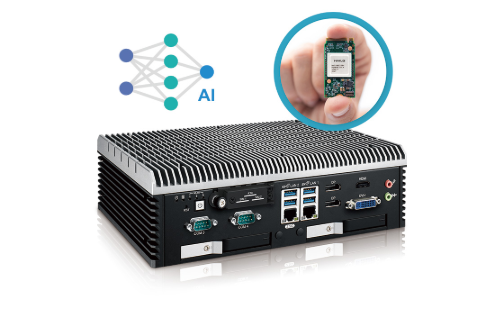

- Compact Hailo-8™ AI Accelerator supports up to 26 Tera-Operations Per Second (TOPS) with best-in-class power efficiency of 3 TOPS/W
- 5 Independent 2.5G LAN with 4 IEEE 802.3at PoE+
- 4 Front-access M.2 SSD Tray, 6 USB 3.2 Gen 2
- DC 9V to 50V Power Input, Software Ignition Control
- Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
- Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
