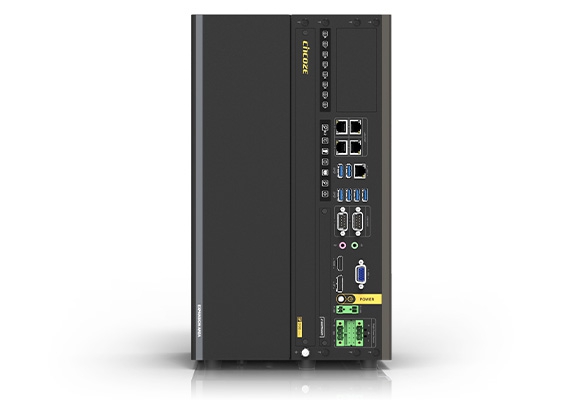

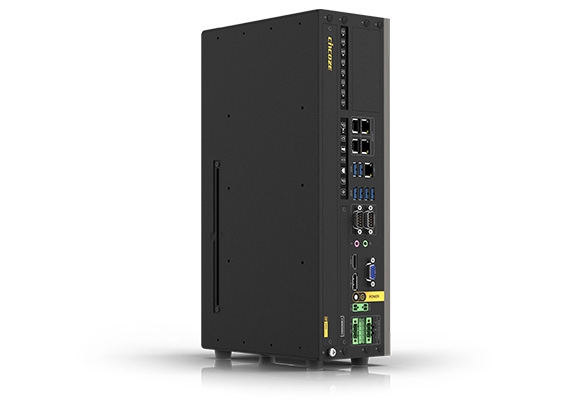

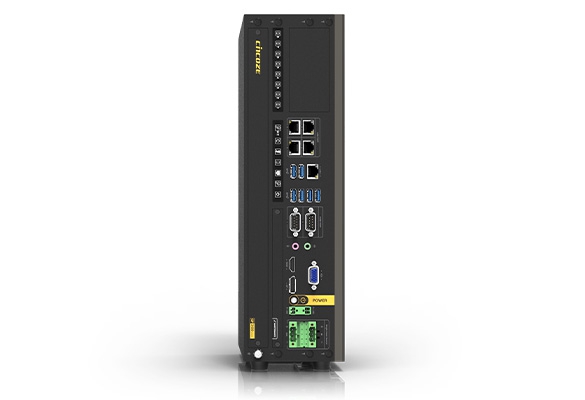

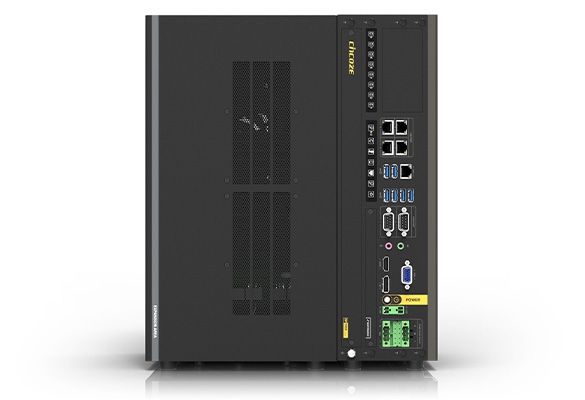

GP-3100

14/13/12th Gen Intel® Core™ Modular GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W

Features:

Intel® 14/13/12th Gen Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 5600MHz, 96GB
4x 2.5GbE LAN and optional 2x 10GbE LAN
1x M.2 Key E Type 2230 Socket for Wireless/Bluetooth/Storage/Intel CNVi Module Expansion
1x M.2 Key B Type 3052/3042 Socket for 5G/GNSS/ Storage/Add-on card Expansion
1x M.2 Key B Type 2280 Socket for GNSS/Add-on card Expansion
1x M.2 Key M Type 2280 for Support Storage/Add-on Card Expansion
4x 2.5" Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm)
Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function

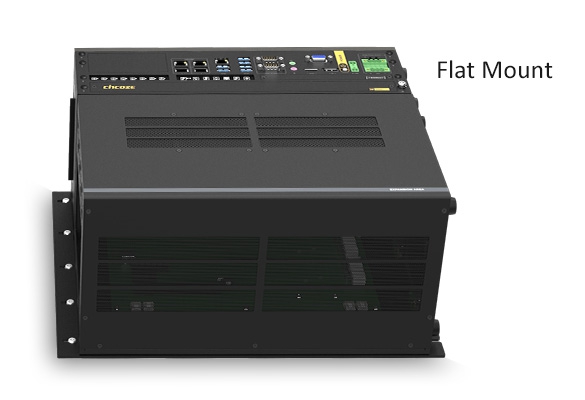

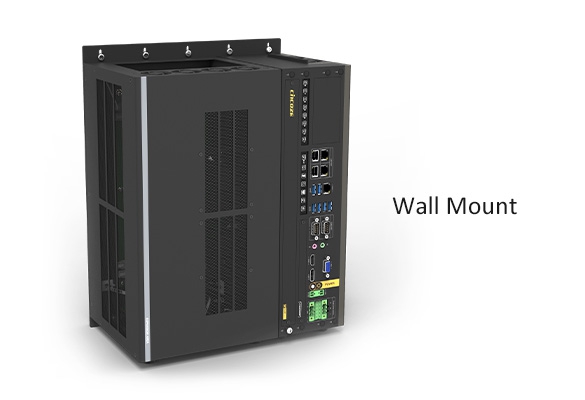

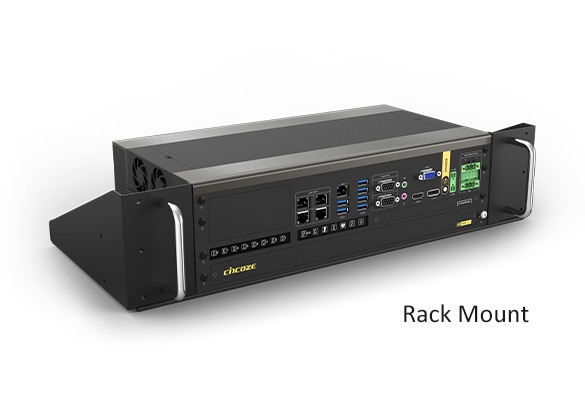

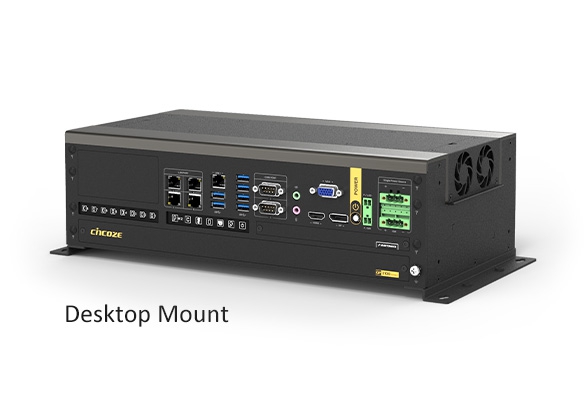

Versatile Mounting Methods (Tower Stand / Desktop / 19”Rack / Flat / Wall Mount)
Wide Operating Temperature -40°C to 70°C (-40°F to 158°F)

Datasheet Contact Us

Overview

The GP-3100 is a high-performance GPU computer for industrial AI and machine vision applications. It supports an Intel® Core™ processor, up to two 300W full-length GPU cards (@48VDC), high-capacity storage, and high-speed I/O. Three patented features, designed for specific customer needs, improve expansion, heat dissipation, and overall stability, making the GP-3100 an ideal choice for complex Edge AI applications.
