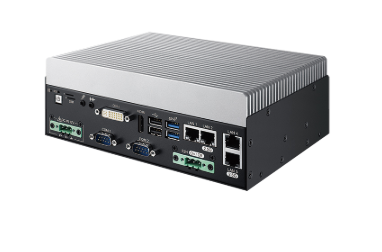

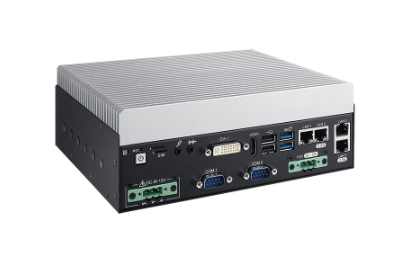

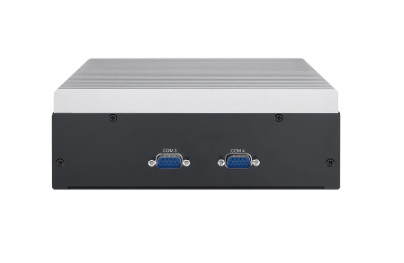

VCM-2000
Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor Compact Embedded Computing System, 3 2.5G LAN, 1 GigE LAN, 4 USB, 4 COM RS-232/422/485, DC 12V or DC 9V to 36V, Fanless or Fan Sink, Rugged, Compact, -25°C to 60°C Extended Temperature
Features:
- Intel® Core™ 200S Series and 14/13/12th Gen Intel® Core™ Processor (codename: Bartlett Lake-S/Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S) running with Intel® H610E PCH supports max 65W TDP CPU
- Intel® Core™ 200S Series with P-core only available (codename: Bartlett Lake 12P)
- Supports 2 DIMM up to 96GB DDR5 5600MHz memory
- 2 USB 3.2, 2 USB 2.0, 2 COM RS-232/422/485
- 4 Independent Intel® GigE LAN ports, including 3 2.5GbE
- 2 External SIM Card Socket support WiFi/4G/5G/LTE/GPRS/UMTS
- Key E, Key B, 2 Mini PCIe for PCIe/USB/SIM Card expansions
- 12V DC Power Input, optional supports 9V to 36V wide range DC power input, Software Ignition Control
- Supports operating temperatures from -40°C to 60°C
