Icubes Industrial

CV-115 Series

15" TFT XGA 4:3 Display Module with Resistive / P-CAP / P-CAP (AG)

Features:

15" TFT XGA 4:3 LCD with Resistive / P-CAP / P-CAP (AG)
50,000 hrs LED Backlight Life
Resolution up to 1024 x 768 (XGA)
350 nits Brightness
Designed with Aluminum Die-cast Front Frame
IP 65 Compliant Front Panel
Convertible Display System (CDS) Supported
Safety: UL, cUL, CB, IEC, EN 62368-1

Datasheet Contact Us

Overview

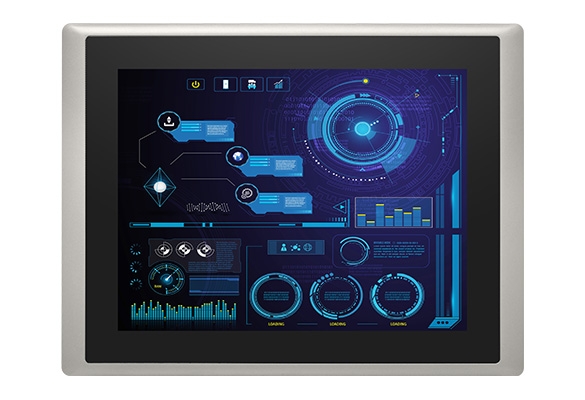

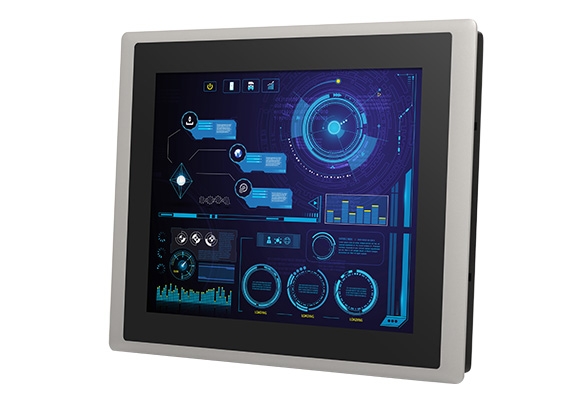

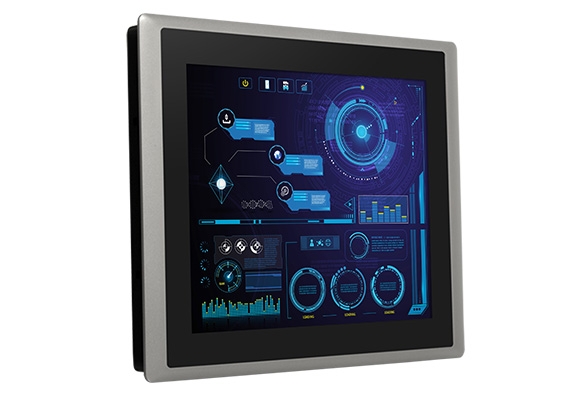

CV-115 Series is 15" LCD display module with Resistive / P-CAP / P-CAP (AG) touch screen. It offers resolution up to 1024x768 (XGA) and 350 nits brightness. CV-115 series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-115 Series allows you to configure, upgrade and maintain your Convertible Display System easily.
