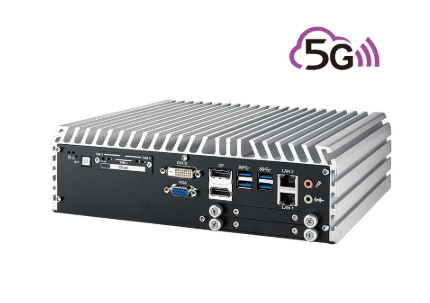

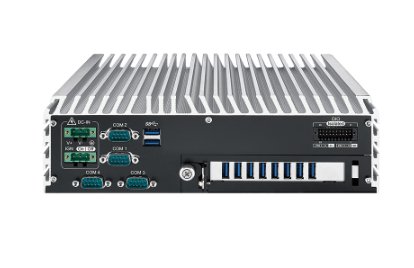

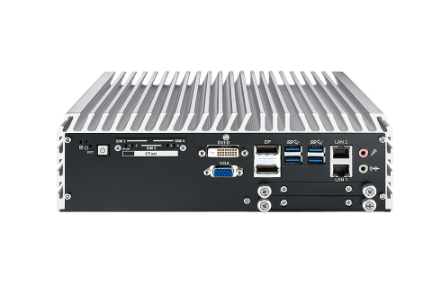

ECS-9610
Quad Core 6th Gen Intel® Xeon®/ Core™ i7 Processor (Skylake-H) Fanless Embedded System with Intel® CM236, 2 Gigabit LAN, 2 Front-access SSD Tray, 1 PCIe x16 Slot, 4 SIM, 6 USB 3.0, 4 COM, 16 Isolated DIO, High Performance, Rugged, Extended Temperature
Features:
- Quad Core 6th Generation Intel® Xeon®/ Core™ i7/ i5/ i3 Processor (Skylake-H) with CM236 Chipset supports 4K display
-
Onboard VGA, DVI-D and dual DisplayPort display interface, up to 3 independent HD displays
- 2 DDR4 2133MHz Memory, up to 32GB (ECC/ Non-ECC)
- Fanless, -25°C to 70°C Operating Temperature
- 6V to 36V DC-in, 80V Surge Protection
-
2 Independent GigE LAN, iAMT 11.0 supported
-
Front-access : 2 2.5" SSD Tray, 3 SIM, 6 USB 3.0, 1 CFast, 4 COM, 16 Isolated DIO
- 4 SIM Card Socket for 3G/ 4G/ LTE/ WiFi/ GPRS/ UMTS
- 1 PCIe x16 Expansion Slot, 4 Mini PCIe/ mSATA
- Configurable Ignition Power Control
- Optional supports full function SUMIT A, B
