Icubes Industrial

DCO-1000-ASL (NEW)

DIN-Rail Fanless Embedded Computer with Intel® Atom® CPU, 2x DP, 2x COM, 4x USB, 4x LAN

Features:

Support Intel® Atom® x7433RE Processor
1x 262-pin DDR5 SODIMM. Max. up to 16GB
Dual Independent Display by 2x Display Port
4x 2.5GbE LAN
1x M.2 (B Key, 3042/3052, PCIe x2, support NVMe)
1x M.2 (B Key, 3042/3052, USB 3.2 Gen2 & USB2.0, support 4G/5G Module)
2x RS-232/422/485, 2x USB 3.2 Gen2, 2x USB 2.0
9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
Wide Operating Temperature -40°C to 55°C
TPM 2.0 Supported
UL 61010-1, UL 61010-2-201, CE, FCC Class A, UKCA, ICES-003

Datasheet Contact Us

Overview

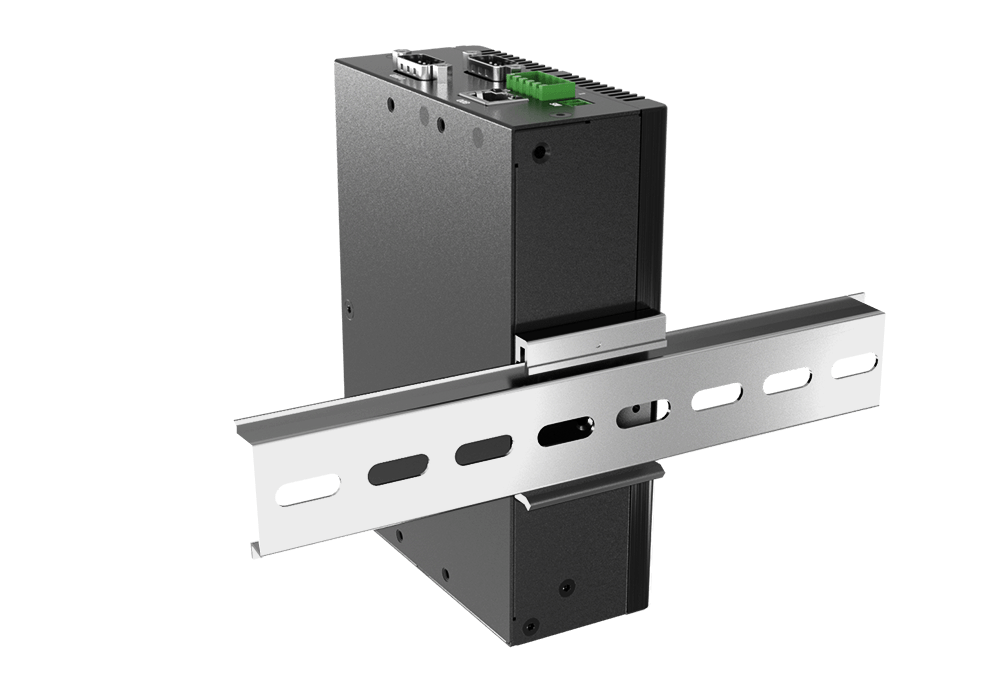

DCO-1000-ASL with fanless, compact and DIN-Rail mounted design features the Intel Atom x7433RE processor, ensuring powerful performance and energy efficiency. Ideal for space-constrained installations requiring high reliability, the DCO-1000-ASL excels in advanced data processing at the edge, making it essential for successful IoT implementations in demanding industrial settings.
